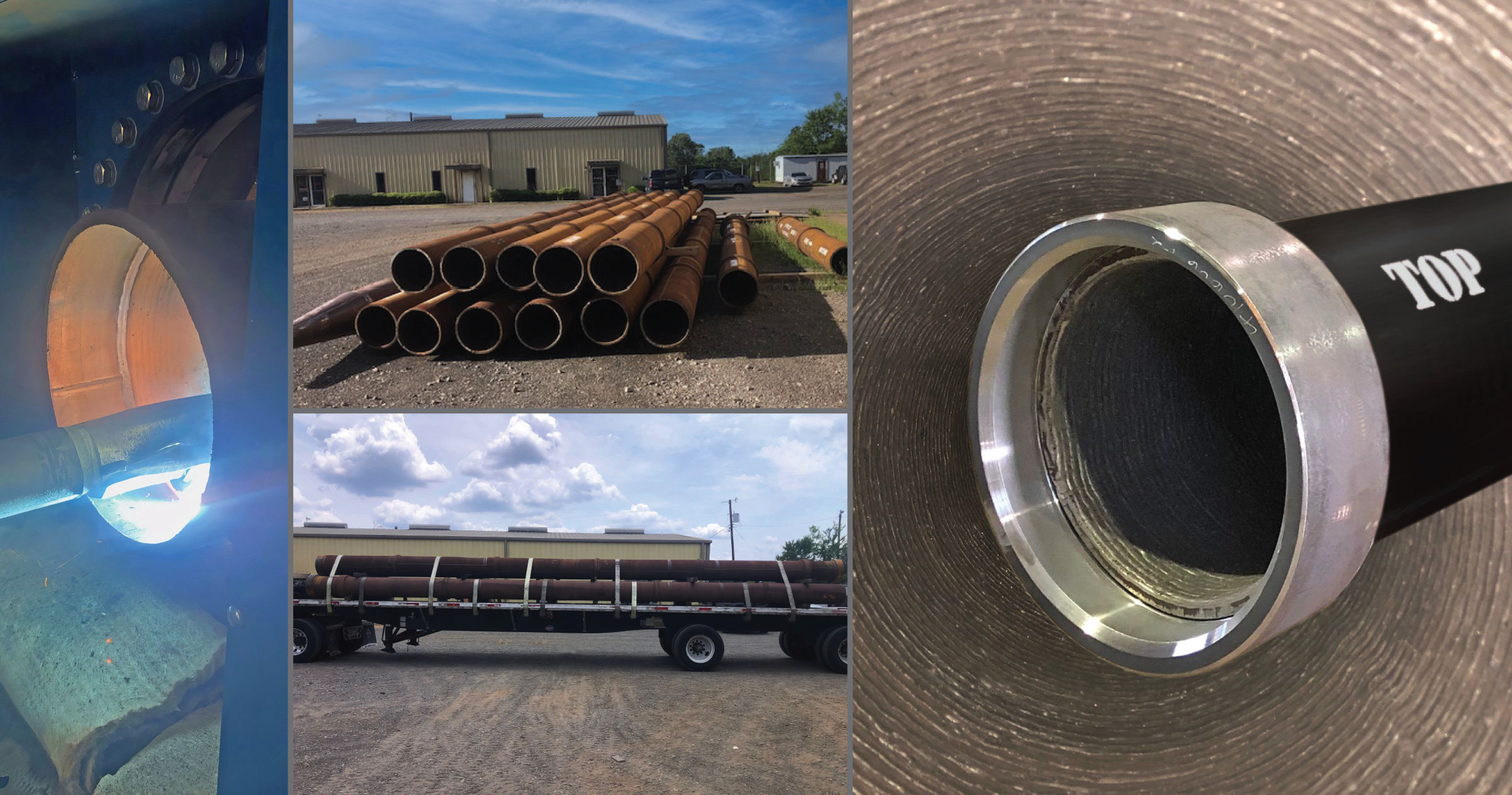

Cladtec, division of SAS Global, proudly manufactures CLADPIPE™ in the USA. CLADPIPE is a composite wear resistant clad pipe with the inner diameter cladded with one of Cladtec’s premium hardfacing materials. The standard base pipe utilized will typically be an extra heavy walled A53 Grade B pipe However, other base pipe materials can be used to meet project specific requirements.

Cladtec manufactures CLADPIPE utilizing the latest in machine/computer automated pipe cladding equipment. This ensures you receive only the highest quality product.

Manufacturing Specifications:

• Cladtec can produce CLADPIPE ranging from a 5.5” finished inner diameter (with cladding applied) to a maximum 26” inside diameter pipe. (special runs up to 30” ID may be possible based on wall thicknesses)
• Manufactured in up to 40 foot long sections depending upon overall specifications.
• NOTE: 5.5” to 8” finished inner diameter pipes are manufactured in 10’ sections
• Piping can be cladded with beads running circumferential.
• 1/4“ wide weld beads.
• Cladding thickness: 1/8” through 1/2“ depending on hardfacing material utilized.
• Straightness tolerance of 3/8” per 48” of length.

Some of the Premium SAS Global material options available:

• SA6000 Patented Microstructure Complex Carbide Overlay Plate
• SA2000 Premium Complex Carbide Overlay Plate
• SA1750CR Premium Chromium Carbide Overlay Plate
• CT-28 Premium Hardfacing
