Premium Wear Resistant Chute Liner Systems
Engineered for Maximum Service Life, Improved Flow, and Eliminate Material Hang-Up
SAS Global Engineers our wear resistant chute liner systems to provide optimum flow while reducing / eliminating material hang-up. Each custom liner system is designed around your specifications and requirements.
SAS can provide various attachment methods:
- Plug Weld

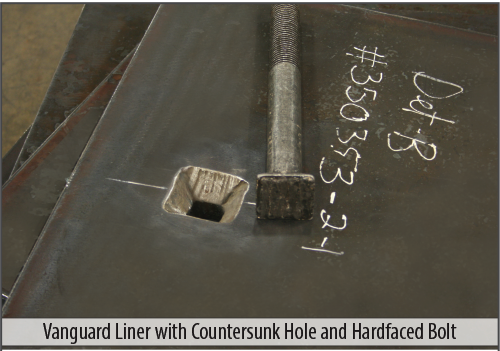

- Bolted

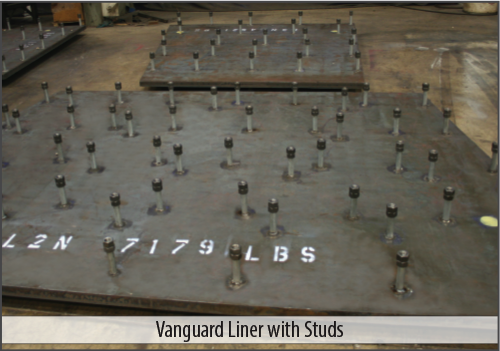

- Studs

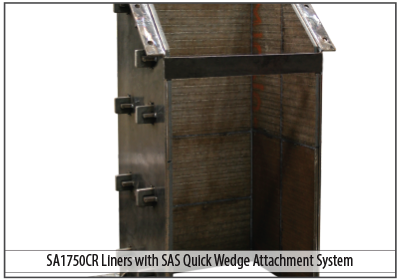

- SAS QWA (Quick Wedge Attachment) System
SAS Global has been developing wear resistant solutions for over 70 years. This allows SAS to offer the very best in materials to provide the longest possible service life.
Some of the Premium SAS Global material options available:
- SA6000 Patented Microstructure Complex Carbide Overlay Plate
- SA2000 Premium Complex Carbide Overlay Plate
- SA1750CR Premium Chromium Carbide Overlay Plate
- RAPIDFLOW Premium Smooth Surface Finish Carbide Overlay Plate
- Vanguard Premium Alloy Wear Plate (460/540 HB) Through Hardened
- SA400 Alloy Wear Plate (360/440 HB) Through Hardened
SA2000® is a specially formulated complex carbide overlay plate designed to generate a high concentration of small primary carbides greatly improving wear resistance over conventional chromium carbide alloys. The refined microstructure containing harder complex carbides provides greater wear resistance and improved toughness. The inert refractory carbides present also increase the temperature resistance and corrosion resistance. Up to double the service life of standard chromium carbide overlay plate.
SA1750CR® is a Premium Chromium Carbide Overlay Plate consisting of a Hypereutectic Matrix with 50-60% Chromium Carbides metallurgically fused to an appropriate steel substrate. This large amount of hard chromium carbides allows SA1750CR to thrive in environments of extremely high abrasion.
SA6000® is the new future of overlay wear plate. The patented microstructure of SA6000 is highly refined with tightly packed complex carbides. This fine grain microstructure reduces the propagation of cracks, which results in not only superior protection from abrasion, but also unheard of impact resistance!
SA-MCCTM was developed to satisfy the various application needs of our customers. SA-MCC Multiple Complex Overlays can be custom blended to provide material characteristics needed for specific wear resistivity. For example, if the application requires increased impact resistance and temperature rating, the blend of complex carbides would have higher levels of Molybdenum and Niobium.

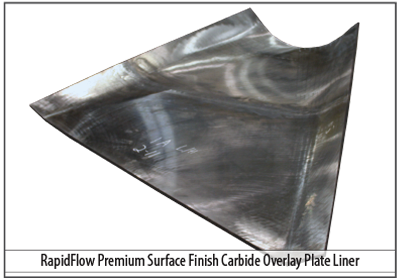

SAS Global Engineers a smooth surface finish on all SureAlloy® Premium Weld Overlay Products. The standard SureAlloy® surface finish can be blanchard ground to provide an even lower coefficient of friction for applications with heavy material hang-up issues. This premium surface is known as RapidFlow® Premium Surface Carbide Overlay Plate. The surface is ground and polished to a 0.2 Ra Micro-Meters finish. This finish is smoother than a stainless steel 304 with 2B finish.
